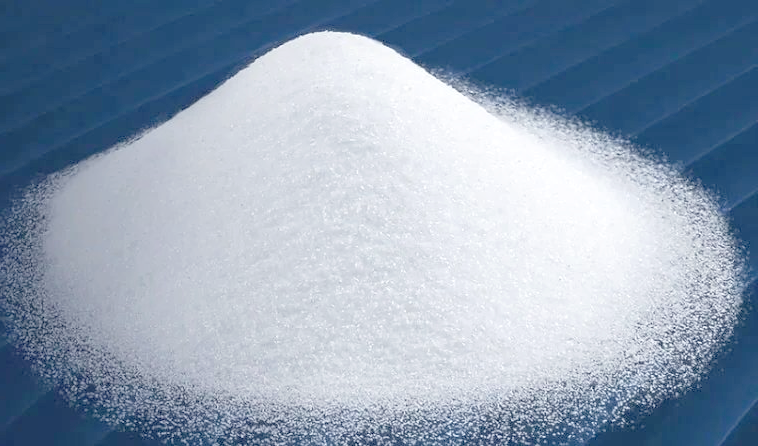

High Purity Quartz Sand: Amazing Sound Characteristics

High purity quartz sand refers to silicon dioxide (SiO₂) with purity levels of 99.9% or higher, making it one of the most refined mineral materials available. High purity quartz sand is composed primarily of silicon dioxide (SiO₂) with minimal impurities, typically exceeding 99.9% purity. This exceptional purity directly translates into remarkable acoustic properties that distinguish high-purity quartz instruments from ordinary glass or ceramic alternatives.

Modern industries including semiconductor manufacturing, optical fibers, advanced ceramics, chemical processing industries, and solar photovoltaics depend on high purity quartz as a critical raw material. High purity quartz sand plays a crucial role in the production of high-tech products such as optical fibers, semiconductors, and solar cells. It is also used to produce quartz crucibles for monocrystalline silicon ingots in the solar photovoltaic industry. Ultra pure quartz is especially important for critical processes in semiconductor manufacturing, solar energy, and optical fiber production. High purity quartz sand is used in the production of optical fibers, which are essential for modern communication transmission. However, since the 1990s, an entirely different application has emerged: meditation instruments. Crystal singing bowls, quartz harps, tuning forks, and sound beds made from high purity materials have transformed sound-healing practices worldwide. The same material properties that make quartz indispensable for integrated circuits and fiber optics—extremely low impurity levels, structural homogeneity, and stable elastic behavior—produce the clear, bell-like tones and extended sustain that practitioners prize.

This article explores why high purity quartz sand delivers such remarkable acoustic performance. You’ll learn about its material properties, including its high melting point of approximately 1,710°C (3,110°F) and relatively low coefficient of thermal expansion, as well as its excellent chemical resistance and high temperature resistance, making it suitable for demanding industrial environments. High purity quartz sand is highly chemically stable in most neutral and mildly acidic environments and resists chemical attack from acids at moderate temperatures except hydrofluoric acid. The article will also cover how it’s classified and produced, and most importantly, how these characteristics translate into the audible qualities that make quartz crystal instruments exceptional for meditation and sound therapy.

Material Properties of High Purity Quartz Sand

Understanding the physical, chemical, thermal, and acoustic characteristics of high purity quartz sand explains why this material outperforms alternatives for sound applications. The following properties work together to create instruments with stable resonance, minimal damping, and exceptional tonal clarity.

Chemical purity and grades

High purity quartz is classified using “N” notation, where each N represents a nine in the purity percentage:

• 3N (99.9%): Approximately 1,000 ppm total impurities, suitable for specialty glass and some optical applications

• 4N (99.99%): Around 100 ppm total impurities, used for solar grade silicon crucibles and quartz glass production

• 4N5 (99.995%): Below 50 ppm total impurities, meeting semiconductor fabrication requirements

• 5N (99.999%): Approximately 10 ppm total impurities, required for advanced semiconductor chips and optical glass

High purity quartz sand is chemically inert and resists participation in most chemical reactions, which is critical for its use in demanding industrial and laboratory applications.

For acoustic instruments, the critical trace impurities include aluminum (typically held below 30 ppm), iron (below 3 ppm), titanium (below 10 ppm), and alkali metals like sodium, potassium, and lithium (each below 5 ppm). These metal impurities directly affect internal friction, which determines how quickly sound energy dissipates.

Physical characteristics

High purity quartz sand exists primarily as crystalline α-quartz, the stable form of silicon dioxide at room temperature. Key physical properties include:

• Mohs hardness of approximately 7, providing excellent durability and scratch resistance

• Crystalline density around 2.65 g/cm³, compared to 2.20–2.21 g/cm³ for fused silica glass

• Particle morphology ranging from angular (mechanically crushed) to rounded (carefully processed), depending on the production method

• Particle size distribution typically controlled between submicron powders and millimeter-scale granules based on application requirements

Thermal properties

The thermal characteristics of high purity quartz contribute significantly to pitch stability in acoustic instruments:

• Melting point around 1720°C, far higher than ordinary glass

• Extremely low coefficient of thermal expansion (approximately 0.5–0.6×10⁻⁶ K⁻¹ for fused silica), compared to 9×10⁻⁶ K⁻¹ for soda-lime glass

• Operating temperature capability up to 1000–1100°C for continuous service

• Superior thermal shock resistance, allowing rapid temperature changes without cracking

High purity quartz sand is highly temperature resistant, maintaining its structural integrity and performance at high temperatures. It is used in processes that require exposure to high temperatures, such as glass melting and sintering.

This low thermal expansion means that high purity quartz instruments maintain consistent pitch across typical room temperature variations. Where ordinary glass instruments might drift noticeably as they warm from handling, quartz singing bowls remain stable.

Acoustic and vibrational behavior

The acoustic excellence of high purity quartz stems from the relationship between its elastic moduli, density, and internal friction. Young’s modulus for crystalline quartz ranges from 70–100 GPa depending on orientation, while fused silica sits around 72 GPa. Combined with moderate density, this produces longitudinal sound velocities of 5.9–6.0 km/s.

The critical difference between high purity quartz and ordinary glass isn’t sound speed—it’s internal friction. The quality factor (Q) measures how efficiently a material sustains vibrations, defined as:

Q = 2π × (stored energy / energy lost per cycle)

High purity quartz achieves Q values that can reach 10⁵ to 10⁷ in precision timing resonators at MHz frequencies. For large acoustic instruments like singing bowls operating in the 100–1000 Hz range, Q values of several hundred to a few thousand are typical, producing audible sustain times of 30–60 seconds for well-made bowls.

The low impurity content minimizes defects that absorb mechanical energy. Each aluminum ion, iron precipitate, or alkali cluster acts as a potential energy sink. By maintaining ultra high purity levels, manufacturers create instruments where sound energy dissipates slowly, producing the long, shimmering tones that characterize quality quartz instruments.

Standards and Classification of High Purity Quartz Sand

Different purity classes and particle size distributions serve distinct applications, from semiconductor wafers to meditation instruments.

Purity classes and applications

Industry and geological surveys have established practical thresholds for high purity quartz classification:

• 99.9% (3N): Glass manufacturing, foundry sands, lower-demand electronics

• 99.95–99.99% (3N5–4N): Solar grade silicon crucibles, photovoltaic cells, certain optical glass batches

• 99.995% (4N5): Advanced solar crucibles, semiconductor industry components, optical fiber preforms

• 99.999% (5N) and above: Semiconductor fabrication quartzware, synthetic quartz glass, precision optical components

• 99.9999% (6N): Ultra-sensitive electronics industry applications, extreme-performance optics

The Norwegian Geological Survey established widely referenced impurity specifications: total impurities below 50 ppm, with Fe₂O₃ below 3 ppm, Al₂O₃ below 30 ppm, TiO₂ below 10 ppm, and individual alkali metals below 5 ppm.

Metallic impurity controls

For chip manufacturing, optical fibers, and high-Q resonators, keeping specific elements below stringent thresholds is essential:

• Sodium (Na), potassium (K), lithium (Li): Must remain in the 1–2 ppm range or below for solar energy industry crucibles; semiconductor grade demands ppb levels. These alkali metals modify the silica network and increase electrical conductivity

• Iron (Fe): Primary cause of coloration and optical absorption; high transparency applications require levels below 0.5 ppm

• Boron (B) and phosphorus (P): Controlled below 1–2 ppm in photovoltaic applications to prevent unintended doping of silicon metal

• Titanium (Ti) and transition metals: Contribute to optical absorption and defect densities; kept at sub-ppm levels

Certificates of analysis

Commercial high purity quartz suppliers provide detailed certificates of analysis that typically include:

• Chemical analysis via ICP-OES or ICP-MS for trace elements

• Loss on ignition (LOI) at 1000–1050°C indicating moisture and volatiles

• Particle size distribution with D10, D50, D90 values or sieve band percentages

• Physical properties including density, bulk density, and specific surface area

• Visual/optical data covering whiteness, color index, and bubble counts after test melts

Acoustic-grade criteria

For meditation and sound-healing instruments, additional specifications beyond chemical purity become important:

• Structural homogeneity: Minimal striae, segregation, or layering that could create nodes of varying stiffness and cause “wolf tones” or dead spots

• Low internal defects: Microbubbles, unmelted grains, and crystalline inclusions act as scattering centers that increase damping and broaden resonance peaks

• Stable elastic properties: Consistent modulus and density ensure predictable pitch and timbre across instrument batches

• Surface quality: Controlled roughness affects friction for mallet play and high-frequency sound components

Particle size and granulometry coding

Producers classify high purity quartz sand not only by chemical composition but also by particle size distribution:

• Submicron powders (D50 0.5–5 µm): Used for slip casting and sintering uniform fused bodies

• Fine flour (D100 < 10 µm): Ideal for homogeneous fused acoustic instruments with minimal porosity

• Granular grades (125–450 µm): Common for solar crucible compaction and pressing

• Coarse grades (0.3–0.8 mm or larger): Used for specific industrial applications

For singing bowl production, fine HPQ flour similar to that used in fused quartzware ensures even melting and minimal trapped bubbles.

Production and Purification Methods

Raw material sources

High purity quartz deposits represent geologically unusual formations where slow cooling and selective fluid processes removed most impurities. Key global sources include:

• Spruce Pine, North Carolina: The global benchmark for ultra high purity levels, producing quartz with 99.999% purity. The Quartz Corp operates major facilities here

• Norway: Southern Norwegian pegmatites and vein quartz bodies evaluated by the Norwegian Geological Survey

• Chinese deposits: Emerging sources in Jiangsu, Sichuan, and other provinces with raw ore purity above 99.5–99.9%

• Australian deposits: Resources processed through CSIRO techniques to achieve 99.995% purity

i minerals is also a key industry player in the high purity quartz sand market, particularly in North America, with significant resource bases and processing capabilities.

Geological criteria for suitable deposits include large homogeneous quartz zones, low natural feldspar and mica contamination, minimal fluid inclusions, and limited fracturing.

Mechanical preparation

The journey from earth’s crust to refined sand begins with careful mechanical processing:

• Primary crushing: Reducing large blocks to centimeter-scale pieces

• Secondary/tertiary crushing and grinding: Using jaw crushers, cone crushers, and ball mills to reach target sizes

• Screening and classification: Separating fractions into predefined bands suited to downstream applications

For high-end processing, ceramic-lined mills replace steel equipment to prevent iron contamination. Each mechanical step potentially introduces microcracks; for acoustic-grade material, controlled grinding protocols minimize damage that would increase damping in the final instrument.

Physical purification

Before more expensive chemical treatments, physical purification removes gangue minerals and metallic contaminants:

• Washing and desliming: Removing clay fines and surface stains through spirals or attrition scrubbers

• Gravity separation: Separating heavy minerals (ilmenite, rutile, zircon, magnetite) from lighter quartz using shaking tables and spirals

• Magnetic separation: High-intensity wet magnetic separators capture iron-bearing minerals through multiple passes, significantly reducing Fe content

• Electrostatic separation: Separating conductive heavy minerals from non-conductive quartz when needed

Physical techniques alone can elevate quartz from approximately 99–99.5% to around 99.9–99.95% SiO₂ for high-quality ores.

Chemical purification

Chemical purification technology strips trace impurities that remain structurally bound:

• Acid leaching: Treatment with HCl and H₂SO₄ at elevated temperatures dissolves metallic impurities and iron staining. Under strictly controlled conditions, hydrofluoric acid attacks silica to liberate lattice-bound impurities near grain surfaces

• Flotation: Surfactants and pH control enable selective attachment of feldspar and mica particles to air bubbles, which float off leaving cleaner quartz

• Multi-stage processing: Sequential treatments can bring total impurities below 50 ppm, with optimized flowsheets achieving below 10 ppm for specific elements

High-temperature treatment and chlorination

For the highest purity grades required in semiconductor manufacturing and premium acoustic instruments:

• Calcination: Heating to 800–1200°C oxidizes organics, drives off adsorbed water, and heals microcracks

• Chlorination: Treatment with Cl₂ or halogen-containing atmospheres at elevated temperatures forms volatile chlorides with Na, K, and other metals, which diffuse out and are removed

These treatments are essential for reaching 5N and 6N purity levels where even tens of ppb sodium or potassium become problematic.

Acoustic-grade considerations

For meditation instrument production, preserving crystalline integrity requires additional care:

• Minimizing mechanical damage: Aggressive milling creates microcracks that persist after sintering and act as mechanical loss centers

• Controlled fusing conditions: Temperature ramp rates, peak temperature, and hold times must ensure complete fusion without trapping bubbles or inducing large thermal gradients

• Stress relief: Post-forming annealing near the glass transition temperature followed by slow cooling avoids frozen-in stresses that could warp resonance frequencies

• Surface finishing: Controlled roughness on bowl surfaces affects friction during play

Quality control

Routine quality verification includes:

• Elemental analysis: ICP-MS or ICP-OES for trace elements with detection limits reaching ppb for critical species

• Particle size analysis: Laser diffraction for D10/D50/D90; sieve analysis for coarser sands

• Optical inspection: Whiteness measurement, absence of visible color spots or inclusions

• Physical tests: Density, bulk density, flowability, and compaction behavior

• Acoustic testing: For specialized products, measuring resonant frequency and decay time of standard test shapes to verify optimal performance

Environmental Impact of High Purity Quartz Sand

The environmental impact of high purity quartz sand is an increasingly important consideration as demand surges across the solar energy industry, electronics, and specialty glass manufacturing. As a critical raw material for solar cells, photovoltaic cells, optical fibers, and high-performance glass, purity quartz sand is at the heart of many high-tech applications driving the global market forward. However, the journey from raw quartz to ultra high purity levels involves processes that can pose environmental challenges.

Environmental Challenges in Production

Extracting and refining high purity quartz sand begins with mining, often in geologically sensitive areas. The process can disturb local ecosystems, generate dust, and contribute to air and water pollution. Crushing and grinding quartz ore releases fine particulates, while purification steps—such as magnetic separation, acid leaching, and chemical vapor deposition—can produce wastewater and require careful handling of chemicals to prevent contamination. Transporting large volumes of quartz sand to processing facilities also adds to the carbon footprint and can disrupt habitats along transit routes.

Sustainable Practices and Industry Leadership

Recognizing these challenges, major players in the high purity quartz industry are investing in more sustainable practices. Companies like The Quartz Corp, Covia Holdings Corporation, and American Elements are adopting advanced purification technology to minimize waste and reduce the use of hazardous substances. For example, chemical vapor deposition and closed-loop acid leaching systems help lower emissions and improve resource efficiency. Many producers are also implementing land reclamation and habitat restoration programs to rehabilitate mining sites, ensuring that environmental stewardship goes hand-in-hand with production.

Environmental Benefits of High Purity Quartz Applications

Despite the environmental costs of extraction and processing, the use of high purity quartz sand in the solar energy industry delivers significant environmental benefits. As a foundational raw material for silicon metal, silicon wafers, and ultimately solar cells and photovoltaic cells, purity quartz sand enables the production of renewable energy technologies that reduce reliance on fossil fuels and lower greenhouse gas emissions. The exceptional purity and chemical stability of quartz sand are essential for manufacturing high-performance glass and optical fibers, which support energy-efficient lighting, communications, and electronics.

Recycling and Circular Economy Opportunities

Recycling high purity quartz sand is another avenue for reducing environmental impact. Used in specialty glass, optical fibers, and other high-tech applications, recycled quartz sand can help conserve resources and decrease waste. However, achieving the extremely low impurity levels required for high purity materials through recycling remains a technical challenge, and ongoing research is focused on developing cost-effective, efficient recycling methods.

Market Growth and the Path Forward

The global market for high purity quartz sand is experiencing rapid growth, fueled by the expanding solar energy sector, electronics industry, and demand for high-performance glass. With projections estimating the market will reach USD 6.26 billion by 2031, the need for sustainable production practices is more urgent than ever. Strict quality control, advanced purification processes, and responsible sourcing are essential to ensure that the benefits of high purity quartz sand are realized without compromising environmental integrity.

Conclusion

Balancing the growing demand for high purity quartz sand with the need to minimize environmental impact is a central challenge for the industry. By embracing sustainable mining, investing in cleaner purification technology, and exploring recycling opportunities, key players are working to ensure that purity quartz sand remains a critical raw material for a sustainable future. As the solar energy industry and other high-tech sectors continue to expand, ongoing innovation and collaboration will be vital to achieving both exceptional purity and environmental responsibility.

High Purity Quartz Sand: Acoustic Properties and Meditation Instrument Applications

The acoustic behavior of high purity quartz represents a convergence of material science and sensory experience that explains why these instruments have become central to modern sound therapy and meditation practices.

Why high purity quartz outperforms ordinary glass

The difference between a high purity quartz singing bowl and an ordinary glass bowl begins at the molecular level. Common glasses contain network modifiers—sodium oxide, potassium oxide, calcium oxide—that break Si–O–Si linkages and create mobile ions. These features increase mechanical loss and reduce Q. Every sodium ion that can move under stress absorbs vibrational energy.

High purity quartz, by contrast, forms a nearly pure, fully polymerized SiO₂ network with far fewer relaxation pathways. The result: dramatically lower damping and significantly higher Q values. Where an ordinary glass bowl might ring for five seconds, a comparable high purity quartz bowl can sustain for thirty seconds or more.

Additionally, commodity glass contains more bubbles, striae, and phase-separated regions than carefully produced fused silica. Each acts as an inhomogeneity that scatters acoustic waves and enhances energy dissipation. The stringent requirements for optical glass and semiconductor crucibles have created purification technology and quality control methods that directly benefit acoustic instrument production.

Basic acoustic physics

The relationship between material properties and sound is straightforward:

• Resonant frequency depends on geometry and material properties: f ∝ √(E/ρ) / L, where E is elastic modulus, ρ is density, and L is a characteristic dimension

• Quality factor (Q) determines how long vibrations sustain: higher Q means narrower resonance peaks and longer decay times

• Internal friction (Q⁻¹) measures energy lost per vibration cycle

For a high purity quartz bowl operating at 400 Hz with Q = 400, the amplitude decay time constant τ ≈ Q/(πf₀) ≈ 0.32 seconds. However, the sound remains audible for many time constants, explaining why subjective sustain can exceed 30–60 seconds. Multiple overlapping modes, each with its own decay envelope, create the shimmering, evolving character practitioners describe.

Pitch stability follows directly from stable material properties. Because fused silica has minimal thermal expansion and modest temperature dependence of elastic modulus, pitch remains consistent across typical indoor temperature ranges of 15–30°C. A 1% change in elastic modulus shifts frequency by approximately 0.5%, or roughly 8–9 cents—just under a tenth of a semitone. High purity quartz instruments simply don’t “go out of tune” the way temperature-sensitive materials might.

Frequency range capabilities

The same material supporting MHz oscillations in timing devices enables rich acoustic behavior across human-audible frequencies:

• Large crystal singing bowls (20–60 cm diameter, several millimeters wall thickness): Fundamental modes typically between 100–500 Hz, with overtones extending to several kHz. Multiple closely spaced modes produce rich, beating spectra

• Crystal harps and chimes: Flat bars or tubes targeting musical scales from approximately 200 Hz to over 3 kHz. The relatively high sound velocity in quartz allows somewhat shorter bars than equivalent metal bars for the same pitch

• Crystal plates and beds: Larger rectangular plates with fundamentals from tens of Hz (bending modes) to multiple kHz, depending on boundary conditions and thickness

Benefits for meditation instruments

The experiential qualities practitioners report correspond directly to measurable material properties:

• Clear, bell-like timbre: High Q and structural homogeneity reduce inharmonic noise and broadband “hiss.” Distinct pitches emerge with strong, slowly decaying overtones

• Extended sustain: Decay times of 30–60 seconds for main modes create enveloping, overlapping tones. The growing demand for longer sustain drives selection of higher purity materials

• Stable pitch: Low thermal expansion coefficient keeps instruments consistent across sessions, seasons, and years of use

• Reduced unwanted noise: Low impurity content and controlled fusion minimize internal scattering and microfracture events that might produce parasitic clicks or rattles

Typical instrument forms

High purity quartz serves various meditation and sound-healing formats:

• Frosted singing bowls: Sand-blasted exterior enhances mallet grip; wall thickness and diameter determine fundamental pitch

• Clear singing bowls: Polished surfaces produce slightly different harmonic content and visual aesthetic

• Alchemy bowls: Trace elements (gold, platinum, various minerals) intentionally added during fusion to alter color and subtly modify density and stiffness

• Crystal flutes: Tube-based wind instruments with the same tonal clarity

• Sound beds and plates: Larger formats for vibroacoustic therapy where subjects lie on or near resonating surfaces

User experience

Since their wider adoption in Europe and North America beginning in the early 2000s, high purity quartz instruments have become fixtures in yoga studios, sound-therapy practices, and group meditation sessions. Users consistently report:

• Deeper relaxation compared to metal bowls

• Perceived “purity” or “clarity” of tone

• Capacity to “fill” a space with evolving, shimmering harmonics

• Consistent performance across instruments of the same model

These subjective descriptions correspond to measurable physical features: high Q concentrating energy in discrete modes, rich overtone content from closely spaced resonances, and slow amplitude decay creating interference patterns that evolve over time.

Design and manufacturing considerations

For instrument designers and product developers, material-driven factors include:

• Grain size selection: Finer starting powders (below 10–50 µm) sinter and fuse more uniformly, reducing residual porosity. Coarser sands may leave larger voids that increase damping and create unpredictable resonances

• Wall thickness and diameter: Increasing diameter lowers fundamental frequency; increasing thickness raises it. The excellent chemical stability and high stiffness of quartz allow thinner walls than ordinary glass while maintaining structural integrity

• Bubble control: Trapped bubbles lower effective modulus slightly (dropping pitch), increase damping (shortening sustain), and add broadband noise. Visually clear, bubble-poor bowls consistently produce cleaner tone than “milky” alternatives

• Fusing temperature profiles: Small shifts in microstructure from different annealing schedules can measurably shift pitch. An 8–9 cent shift is noticeable to trained ears, making process control essential for consistent tuning

• Surface treatment: Frosted (sandblasted) surfaces enhance friction for mallet play; the material’s Mohs hardness of 7 ensures durable surface finishes

A practical example: if a bowl manufacturer shifts from 4N to 4N5 grade raw material while maintaining identical fusing parameters, the reduction in metal impurities typically produces measurably longer sustain and slightly cleaner high-frequency partials. The difference is audible even to untrained listeners in side-by-side comparison.

Key Takeaways

The remarkable acoustic properties of high purity quartz sand stem from the same material characteristics that make it indispensable for semiconductors, optical fibers, and solar photovoltaics:

• Ultra-low impurity content minimizes internal friction, enabling quality factors that produce sustained, clear tones

• High transparency in the material correlates with low defect density and homogeneous structure

• Excellent chemical stability and low thermal expansion ensure pitch remains consistent over time and temperature

• Controlled production from major players like Quartz p establishes consistent raw material for reliable instrument manufacturing

Whether you’re a sound therapist selecting instruments for practice, a manufacturer developing new product lines, or a meditation practitioner curious about why quartz bowls sound so distinctive, the answer lies in material science. The rapid growth of sound-healing practices has created a specialized applications segment that leverages purification technology originally developed for high tech applications.

Understanding these connections transforms how you evaluate and appreciate high purity quartz instruments. The next time you hear a crystal singing bowl sustain for thirty seconds or more, you’re experiencing the audible signature of silicon dioxide refined to 99.99% purity—a direct translation of material excellence into sound.
